Correct installation method of Auto Soap Dispenser
Release Time:
Jan 14,2022

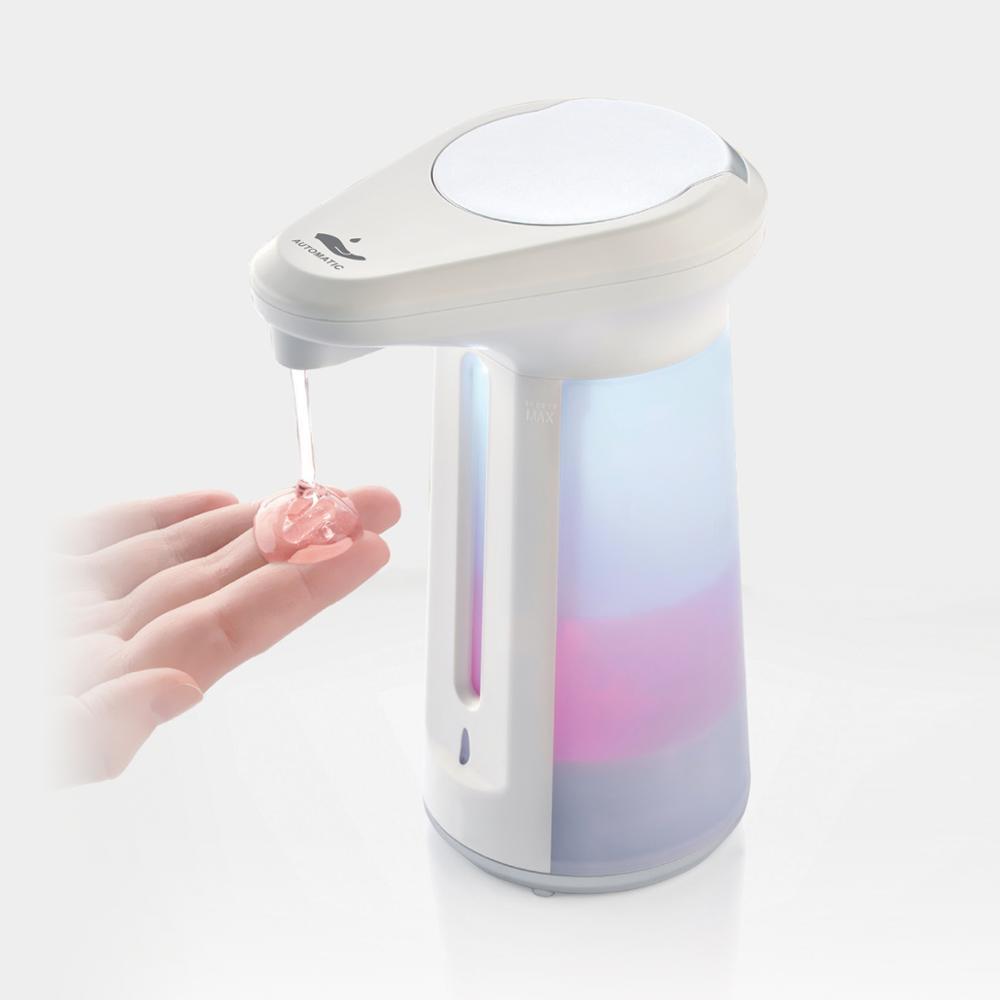

Auto Soap Dispenser, also called induction soap dispenser, is a device that automatically gives soap by sensing the human body. The Auto Soap Dispenser is a device with beautiful appearance, which is healthy and environmentally friendly to use, and can effectively avoid secondary cross-infection.
Auto Soap Dispenser, also called induction soap dispenser, is a device that automatically gives soap by sensing the human body. The Auto Soap Dispenser is a device with beautiful appearance, which is healthy and environmentally friendly to use, and can effectively avoid secondary cross-infection.
1. Select a suitable location, drill a bottom hole on the concrete wall with an impact drill, and install the rubber plug. Then fix the metal frame to the wall with screws.
2. Fasten the control box to the metal frame with screws, then place the Auto Soap Dispenser box on the metal frame. (Note: Please confirm the vertical distance between the soap dispenser nozzle and the bottom of the metal frame, so as not to dispense liquid)
3. Auto Soap Dispenser select a suitable position on the table, punch a round hole (diameter 25mm is suitable) with an impact drill, then install the faucet and fasten it with a nut. When installing, pay attention to the distance between the Auto Soap Dispenser and the faucet to prevent malfunctions; the center of the round hole is away from the edge of the sink to ensure that the soap dispenser residue can drip into the sink.
4. Fit the clamps to the Auto Soap Dispenser first, then connect the Auto Soap Dispenser fittings to the conduit on the faucet, and finally clamp with the clamps.
5. Connect the gear pump motor wire, induction head cable and power wire to the control box as shown in the figure. When connecting the sensor head cable, fasten it with a nut.
6. Check whether the power supply is plugged in, please insert the adapter plug into the power socket completely.
7. Please check whether the soap dispenser tube is fully connected and fastened.
8. The Auto Soap Dispenser manufacturer tells you to check whether the motor wire of the wheel pump and the induction head cable are completely connected and fastened.
